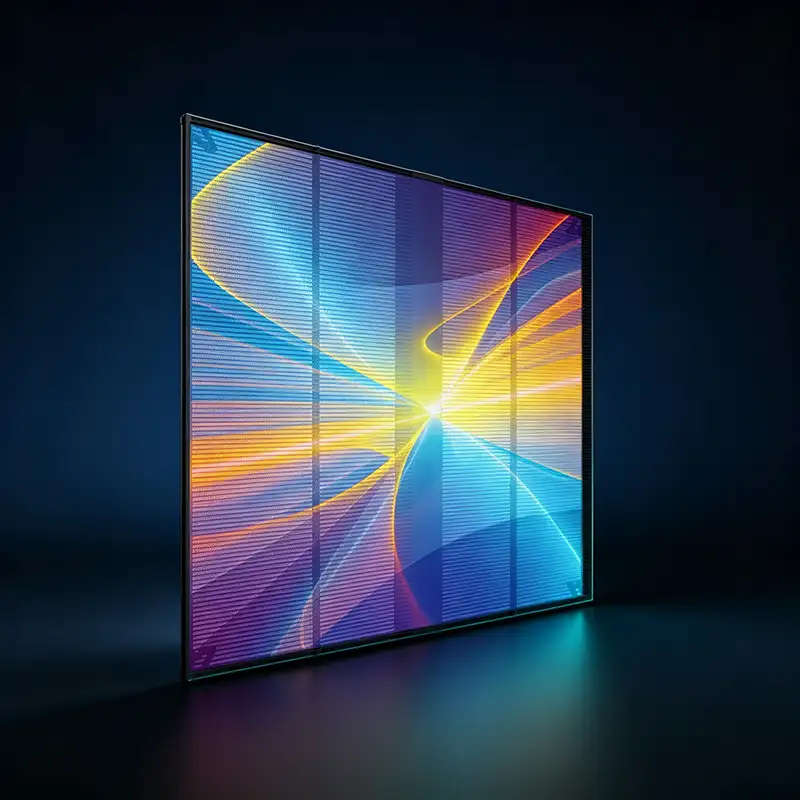

Grid Transparent Screen
High transparency, lightweight, direct glass mounting, IP65/IP67 outdoor protection.

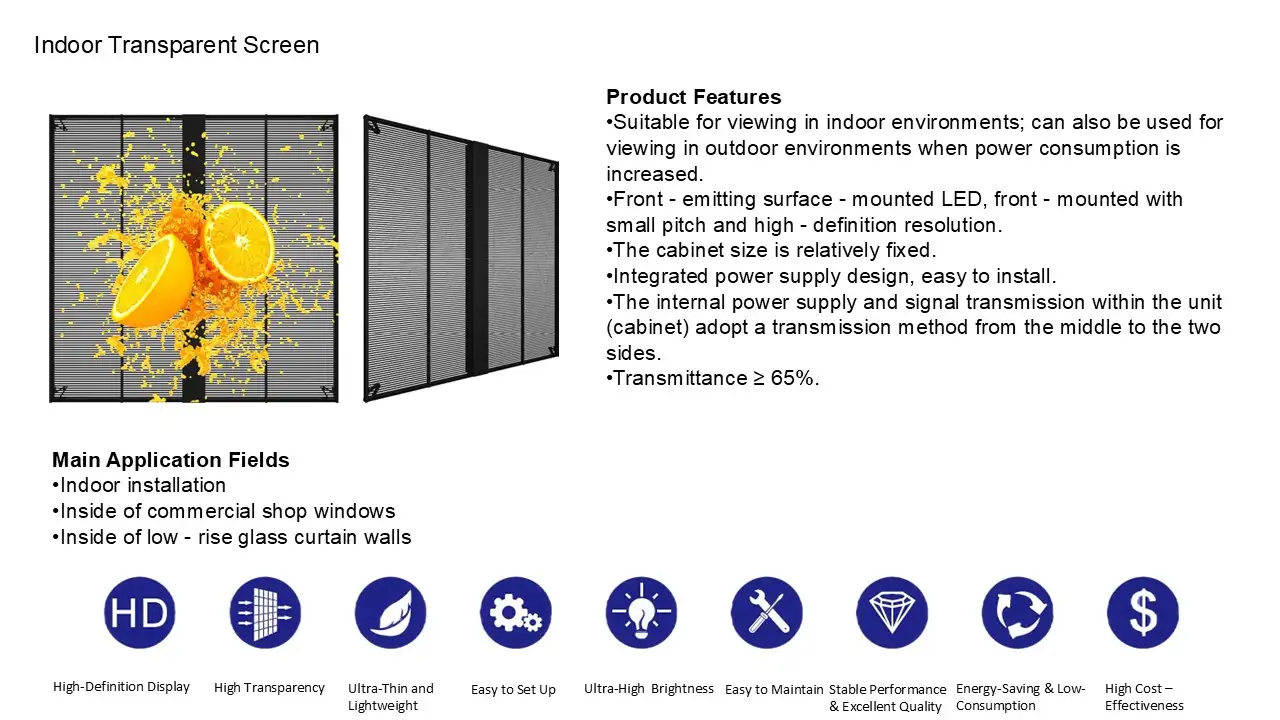

The Grid Transparent LED Display includes indoor and outdoor transparent screens. It features high transparency, lightweight design, and direct glass curtain wall mounting. Indoor versions offer ≥65% transparency, while outdoor versions provide IP65/IP67 protection and 4000–8000 nits brightness.
Product Overview
Technical Advantages
Light and thin, no pressure on glass. High transparency (up to 95%) without affecting light intake. Wide 140° viewing angle with no color deviation. Bendable and cuttable for flexible design.
System Integration
No additional steel frame required, directly fixed on glass curtain wall. Integrated power supply and signal transmission. Supports hanging, stacking, and fixed installation.
Maintenance & Reliability
Front and rear maintenance available, reducing maintenance costs. Outdoor versions feature IP65/IP67 waterproof and dustproof protection. Lifespan ≥100,000 hours.
Product Presentation
Related Application

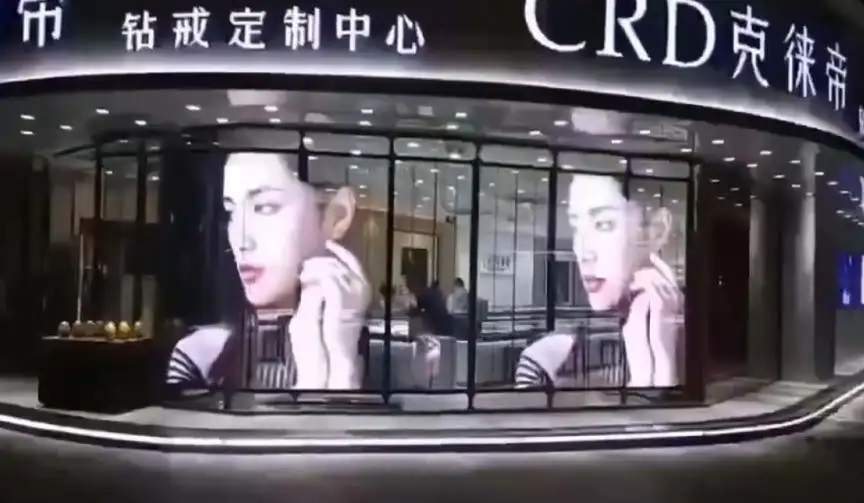

Jewelry Store Window Transparent LED Display
High-end retail windows need striking displays while keeping the store visible. Our transparent LED screen adheres directly to glass curtain walls with high transparency and brightness, playing HD ads without blocking window displays or natural light.

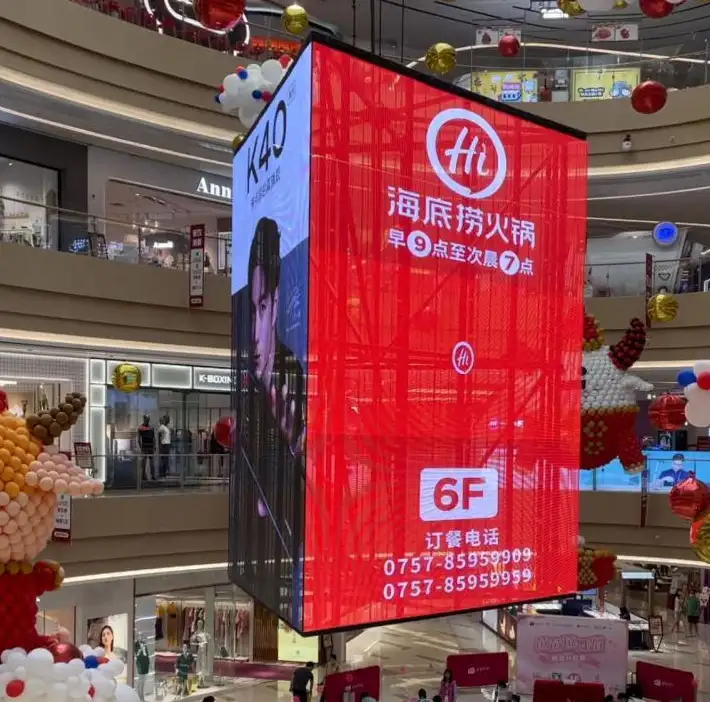

Shopping Mall Atrium Hanging Transparent LED Display
Shopping mall atriums need eye-catching advertising without blocking sightlines. Our transparent LED display can be built into suspended boxes or cubes with up to 90% transparency, delivering bright, dynamic ads from every angle while keeping the space open and airy.
Technical Specifications
| Category | Value |
|---|---|
| Pixel Pitch | P2.6-5.2 / P2.8-5.6 / P3.125 / P3.91-7.82 / P7.82 / P3.9-7.8 / P7.8 |
| Brightness | 600–5000 cd/m²; 4000–4500 nit |
| Refresh Rate / Grayscale | 1920/3840 Hz; ≥2600/3840 Hz; 16 bit |
| Protection / Environment | IP30; IP65; -40°C to +40°C; -20°C to +50°C |
| Power / Lifespan / Maintenance | Max/avg 800/200 W/m²; average <260 W/m²; lifespan ≥100000 h; front/rear maintenance |
Frequently Asked Questions
