Shopping mall atriums are evolving from traditional advertising billboards into immersive architectural art installations. LED displays are no longer simple media players—they are integral to the building's design language. In 2026, the three dominant directions are transparent LED displays, custom-shaped LED screens, and interactive floor LED tiles. Transparent LED walls are becoming a common feature in retail storefronts and shopping malls, enabling immersive storytelling without blocking natural light or visibility
Discuss Your Project
Five Pain Points, One Answer
Screen washout in sunlight
Standard indoor screens: 800-1500 nits — invisible in daylight. CHECHI:
5000-7000 nits with auto-brightness — sharp at noon, soft at night. Content
stays visible all day.
Bulky screens ruin aesthetics
Traditional
LED boxes exceed 10cm thick, blocking light and views. CHECHI: one-third the
thickness of conventional screens; transparent film at 0.8-3mm with 85%-95%
transparency — visible when on, invisible when off.
Upper floors can't see the screen
Single-sided screens miss higher floors and side angles — ad value
underutilized. CHECHI offers double-sided, ring, and 360° wraparound screens —
full coverage, zero blind spots, maximum ad ROI.
Crowds pass through but don't stay
High foot traffic doesn't mean high engagement. CHECHI interactive floor tiles:
≥500kg/㎡
load capacity, pressure-sensing, multi-touch. Data shows dwell time extends
from minutes to 15-20+ minutes — with effects that drive photo and video
sharing.
Installation disrupts operations
Traditional installs: 1-2 weeks of scaffolding and closures — tenant complaints
guaranteed. CHECHI: prefabricated modules, factory-assembled with 72-hour
burn-in. On-site install in 3-7 days, scheduled nights or off-peak — zero
daytime disruption.
Product Comparison
|
Solution |
Best For |
Key Specs |
Pitch |
|
Ultra-Thin Double-Sided Suspended |
High-ceiling (3+ stories) |
1/3 traditional thickness, dual display |
P3.9-P6.25 |
|
LED Transparent Film |
Glass-dome / daylight atriums |
0.8-3mm, 85%-95% transparent |
P5-P10 |
|
Interactive Floor Tile |
Ground-floor high-traffic zones |
≥500kg/㎡, IP65, pressure-sensing |
P6.25 |
|
SMD High-Definition |
Standard atriums |
Seamless, ≥1920Hz refresh |
P2.5-P4 |
|
Custom Shaped |
Landmark-seeking malls |
Fully customizable |
Custom |
Selection Guide: 3-5m viewing distance → P2.5 | 5-10m → P3.9-P4 | 10m+ → P5-P10
Key Specifications
|
Category |
Specifications |
|
Display Performance |
5000-7000 nits · ≥3840Hz refresh · 50,000-80,000hrs LED life · Commercial-grade color reproduction |
|
Structural Design |
Thinnest 0.8mm · Max transparency 95% · Double-sided = 1/3 traditional thickness |
|
Interactive Capability |
≥500kg/㎡ load · Pressure + multi-touch · IP65 waterproof/abrasion-resistant |
|
Installation & Service |
Prefab modules · 3-7 days on-site · Front-serviceable · Night/off-peak available |

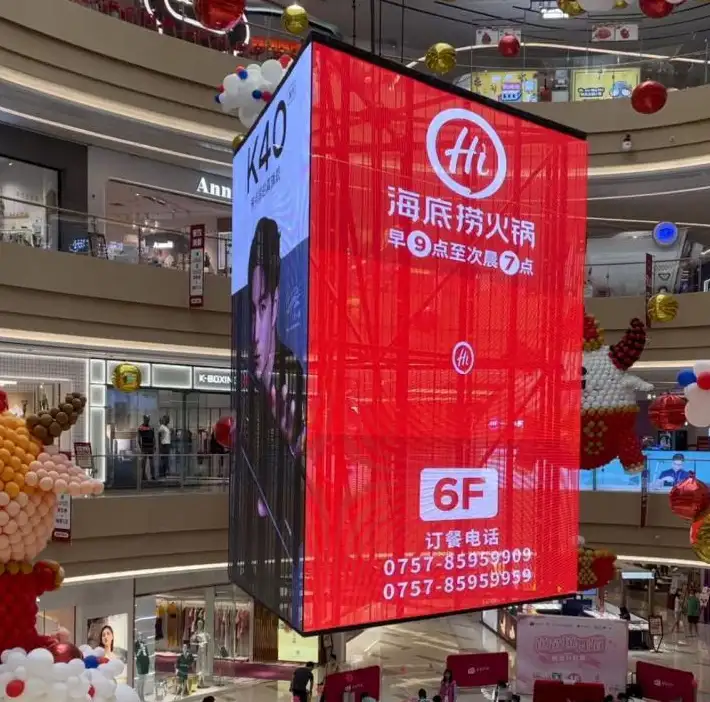

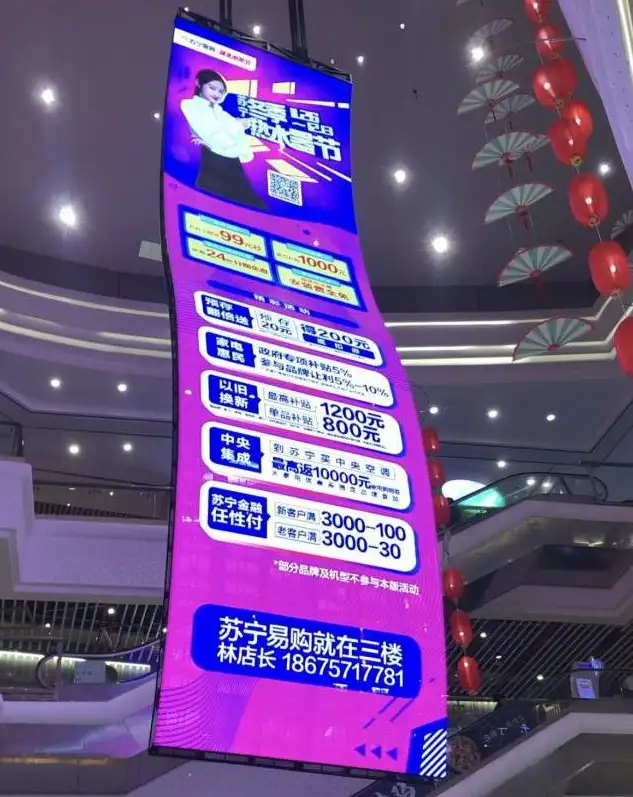

Project Name: A Shopping Mall Atrium
Project Date: July 2024
Project Area: 240 m²
Project Product: Grille Transparent Screen P3.91–P7.82
The BTX-FL series uses flexible soft PCB boards and high-quality silicone bottom cases, enabling ≥120° bending for both inner and outer arcs. With 3840Hz refresh rate and brightness up to 600 nits (P2.5), it delivers smooth, vivid images for creative curved displays. The V-shaped soft rubber design allows splicing without interference, offering wider styling freedom.
Learn More

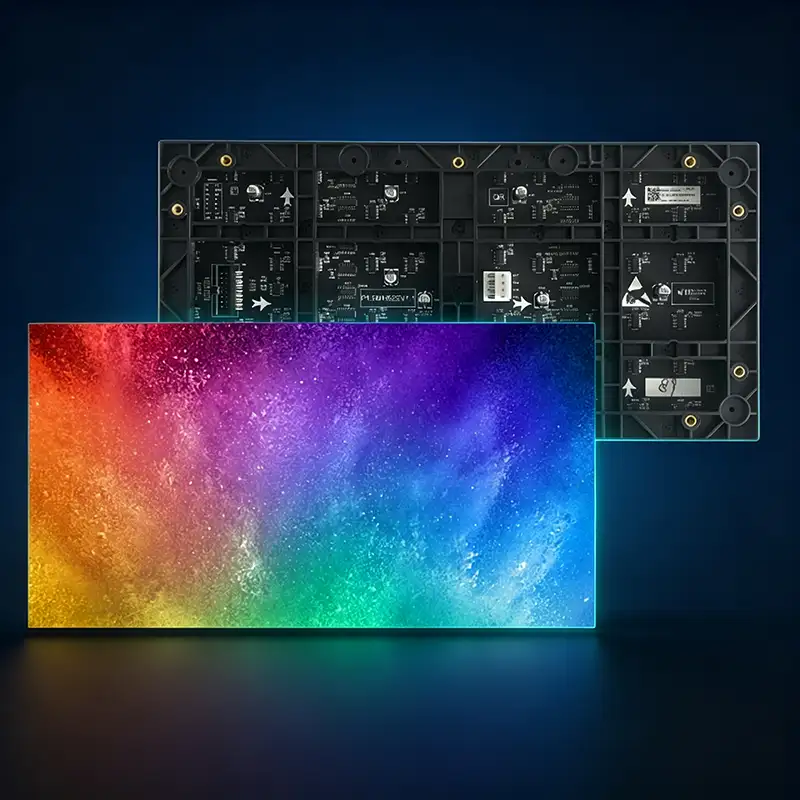

The CHECHI BTQ Series is an indoor fine-pitch LED display available in P1.25, P1.5, P1.8, P2, and P2.5. Featuring BOE panels and a die-cast aluminum cabinet, it delivers ultra-high contrast, moiré-free visuals, and front maintenance for conference rooms, showrooms, and control centers.
Learn More
The AR Series is an indoor and outdoor LED floor tile screen available in P2.6, P3.91, and P4.81. Featuring a die-cast aluminum cabinet, it supports up to 2 tons of surface load, 3840/7680Hz refresh rate, and front maintenance. Ideal for stage floors, dance floors, and interactive exhibitions.
Learn MoreTell us about your space and requirements. Our team will design a customized LED display solution for your project.
