Easily Detachable Display

AR Series

Up to 2 tons load capacity, 7680Hz refresh rate, and IP65 outdoor protection.

The AR Series is an indoor and outdoor LED floor tile screen available in P2.6, P3.91, and P4.81. Featuring a die-cast aluminum cabinet, it supports up to 2 tons of surface load, 3840/7680Hz refresh rate, and front maintenance. Ideal for stage floors, dance floors, and interactive exhibitions.

Easily Detachable DisplayProduct Type

Talk to an Engineer

Product Overview

Technical Advantages
The AR series delivers high brightness (up to 1200 nits) and a 160° wide viewing angle for clear visibility from any position. With a high refresh rate of 3840/7680Hz and 14–16 bit gray scale, it ensures flicker-free, vivid visuals for live events and broadcasts. The unique beveled edge design is optimized for stage lifting requirements.

System Integration
The floor tile screen supports seamless splicing with adjustable height bases, making installation flexible and convenient. It features an integrated panel design with cabinet handles, power input/output, and data input/output. The edge-wrapping aided design protects the screen and ensures a secure stage setup.

Maintenance & Reliability
The AR series supports front maintenance for quick and easy repairs. Built with toughened glass and a die-cast aluminum cabinet, it offers a surface load capacity of up to 2 tons (2000kg), making it strong enough for vehicles and heavy stage props. It is available in indoor (IP31) and outdoor (IP65/IP54) versions for versatile applications.

Product Presentation

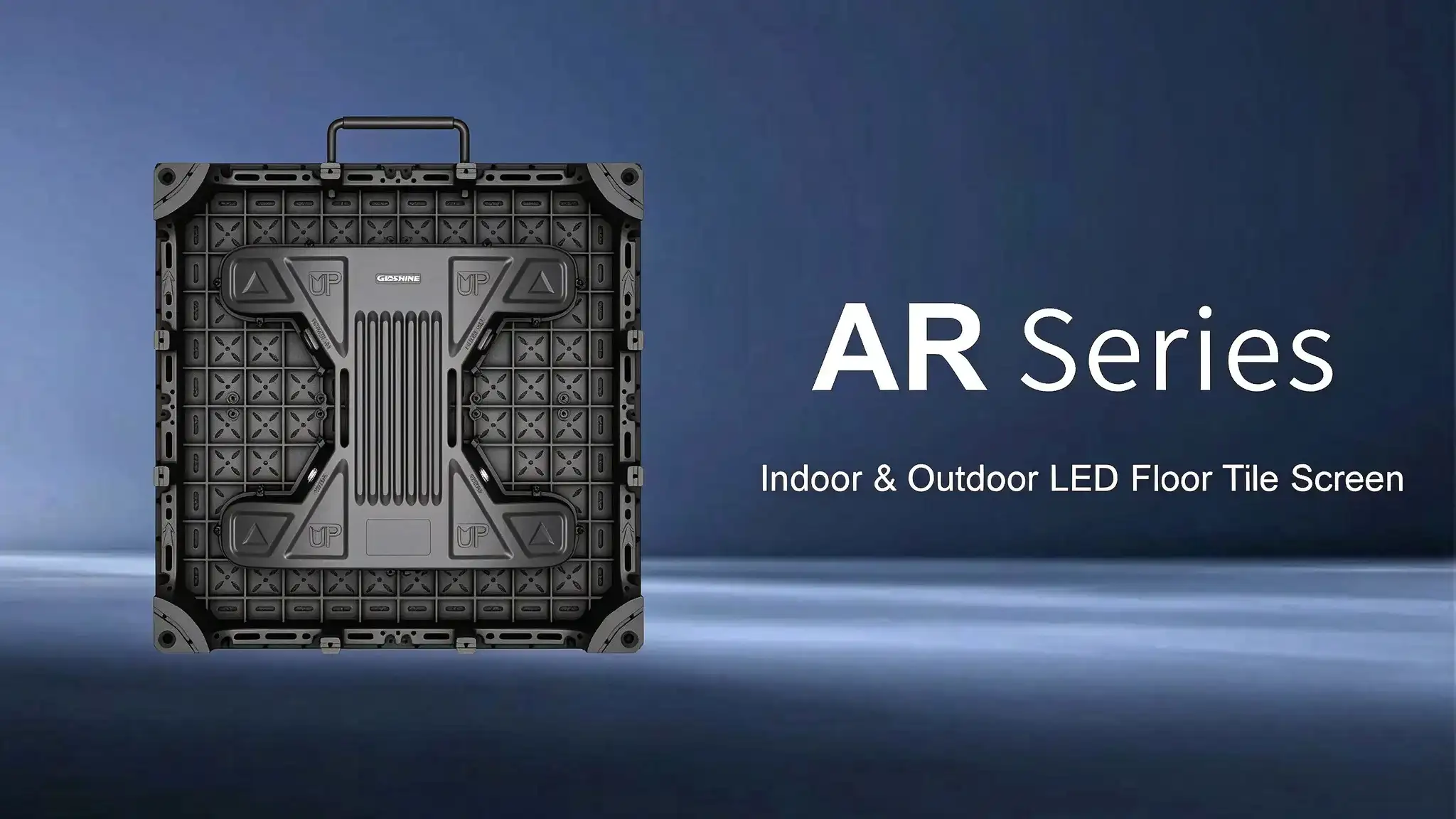

AR Series indoor and outdoor LED floor tile screen with die-cast aluminum cabinet and handle design.

Get the product catalog

More application

Technical Specifications

Category	Value
Pixel Pitch	P2.6 / P3.91 / P4.81
Brightness	600–900 nit; 800–1200 nit
Protection / Environment	IP31; front IP65/rear IP54

Download Full Datasheet

Frequently Asked Questions

It supports up to 2 tons (2000kg) for outdoor versions and 1500kg for indoor versions. The toughened glass surface makes it strong enough for vehicles, dancers, and heavy stage props.

Yes. The outdoor version features front IP65 and rear IP54 protection, making it rainproof and dustproof. The indoor version has IP31 protection.

The AR series offers P2.6 and P3.91 for indoor use, and P3.91 and P4.81 for outdoor use. You can choose based on your viewing distance and budget.

Yes. It features an integrated panel design with cabinet handles and supports front maintenance. The adjustable height floor tile base makes installation flexible and convenient.

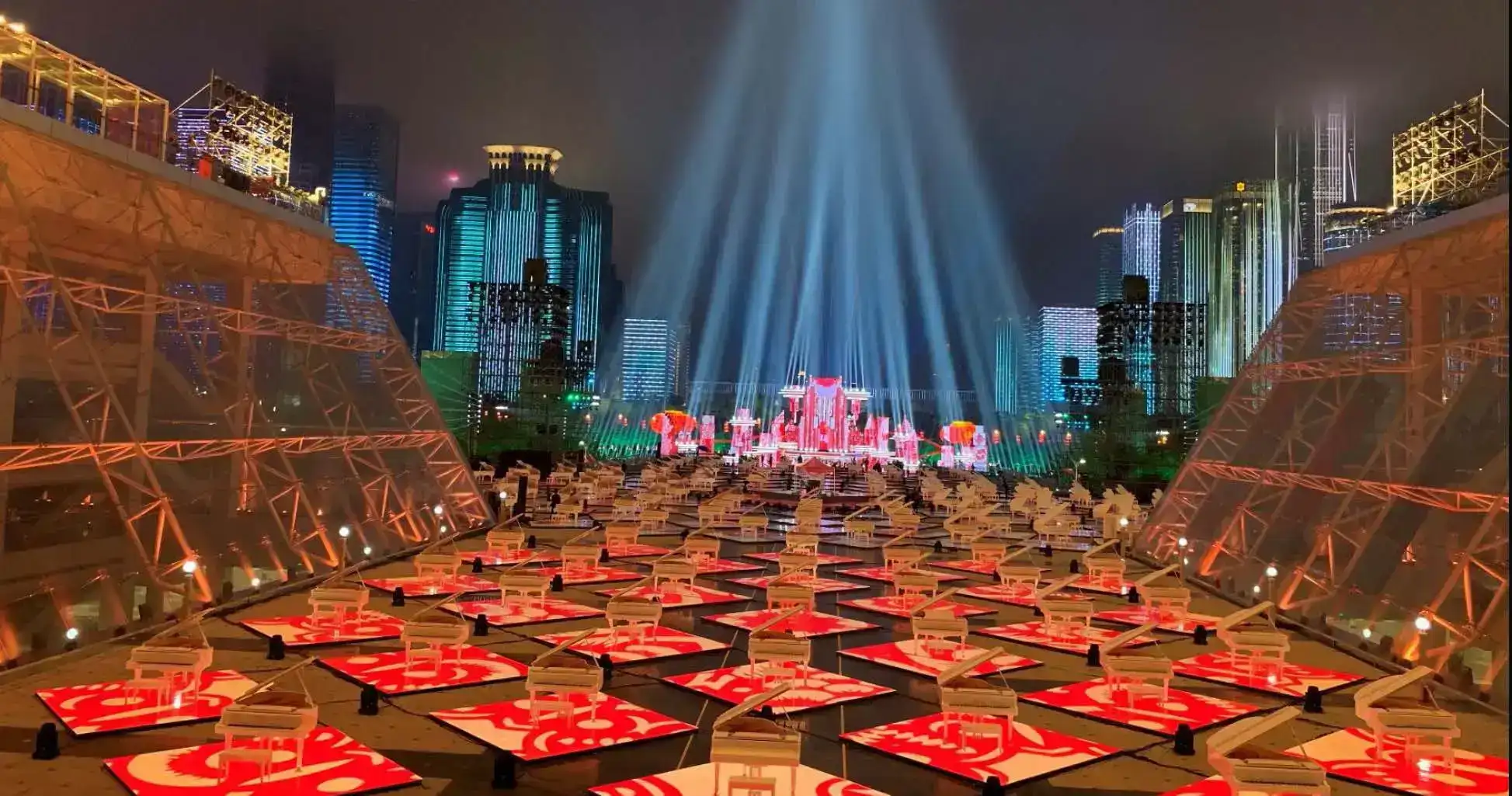

It is ideal for stage floors, dance floors, exhibition halls, and interactive displays. It has been used in major events like the 2019 Spring Festival Gala (3100㎡) and the Asian Cultural Exchange Conference (3000㎡).
