Fixed Installation Display

BTS Series

High brightness. Stable performance. Energy-efficient.

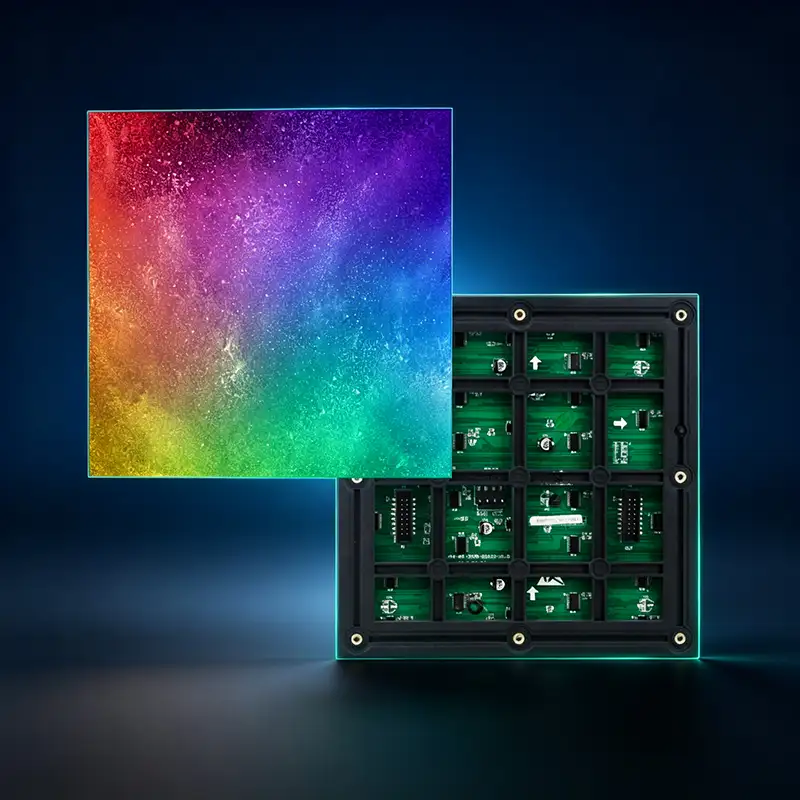

The BTS Series is a high-brightness outdoor LED display module available in P2.5–P10. With ≥5500 nits brightness, ≥5000:1 contrast, and ≥1920Hz refresh rate, it delivers vivid, flicker-free visuals for outdoor advertising, stadiums, and commercial facades.

Fixed Installation DisplayProduct Type

Talk to an Engineer

Product Overview

Technical Advantages

The BTS series uses high-quality lamps with brightness ≥5500 nits, contrast ratio ≥5000:1, and a wide 120° viewing angle. A low-scan IC reduces flickering, while 14-bit gray scale and constant current drive deliver stable, rich color gradation. Single-point brightness and color correction ensure uniformity across the entire screen. The module operates at low voltage (DC 4.2–5V), with average power consumption of 150W/m² and maximum 450W/m², reducing heat and operating costs. Typical lifespan is ≥100,000 hours.

System Integration

The BTS series supports standard video processing and network infrastructure. Signal sources connect to a video processor, then to a sending card, and via network cable to the receiving card and power supply inside the screen. A two-in-one infrastructure combines the video processor and sending card to simplify the system. Flexible flat cables connect receiving cards to LED modules, ensuring stable signal transmission for projects of various sizes.

Maintenance & Reliability

The modular design supports single-point and single-lamp maintenance, allowing individual pixels or lamps to be replaced without swapping the entire module. Each module weighs approximately 0.4kg, and panel sizes are standardized at 320×160mm or 192×192mm. The constant current driver IC and low-voltage operation reduce long-term failure risk. These features help lower maintenance costs and extend the display’s service life.

Product Presentation

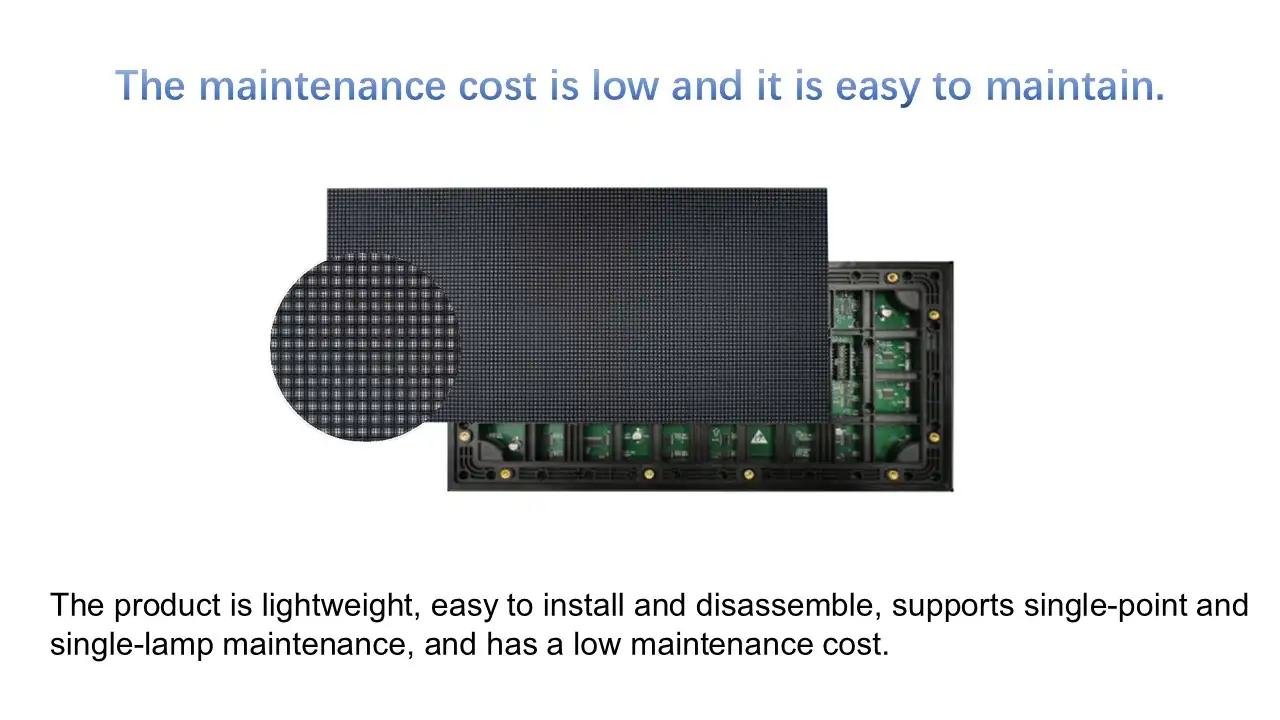

BTS series LED display module, lightweight and easy to disassemble, supports single-point and single-lamp maintenance for low repair cost.

Get the product catalog

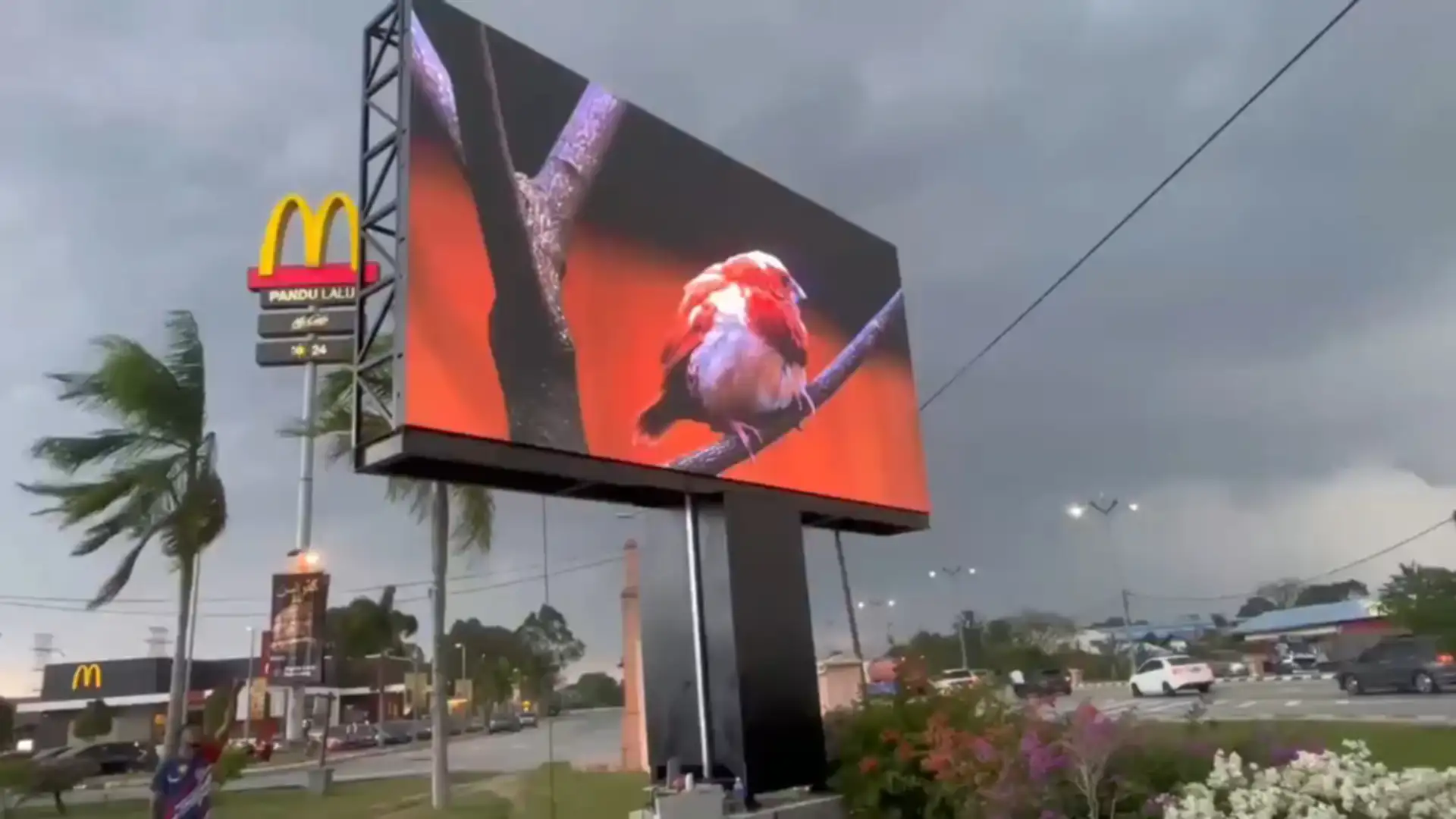

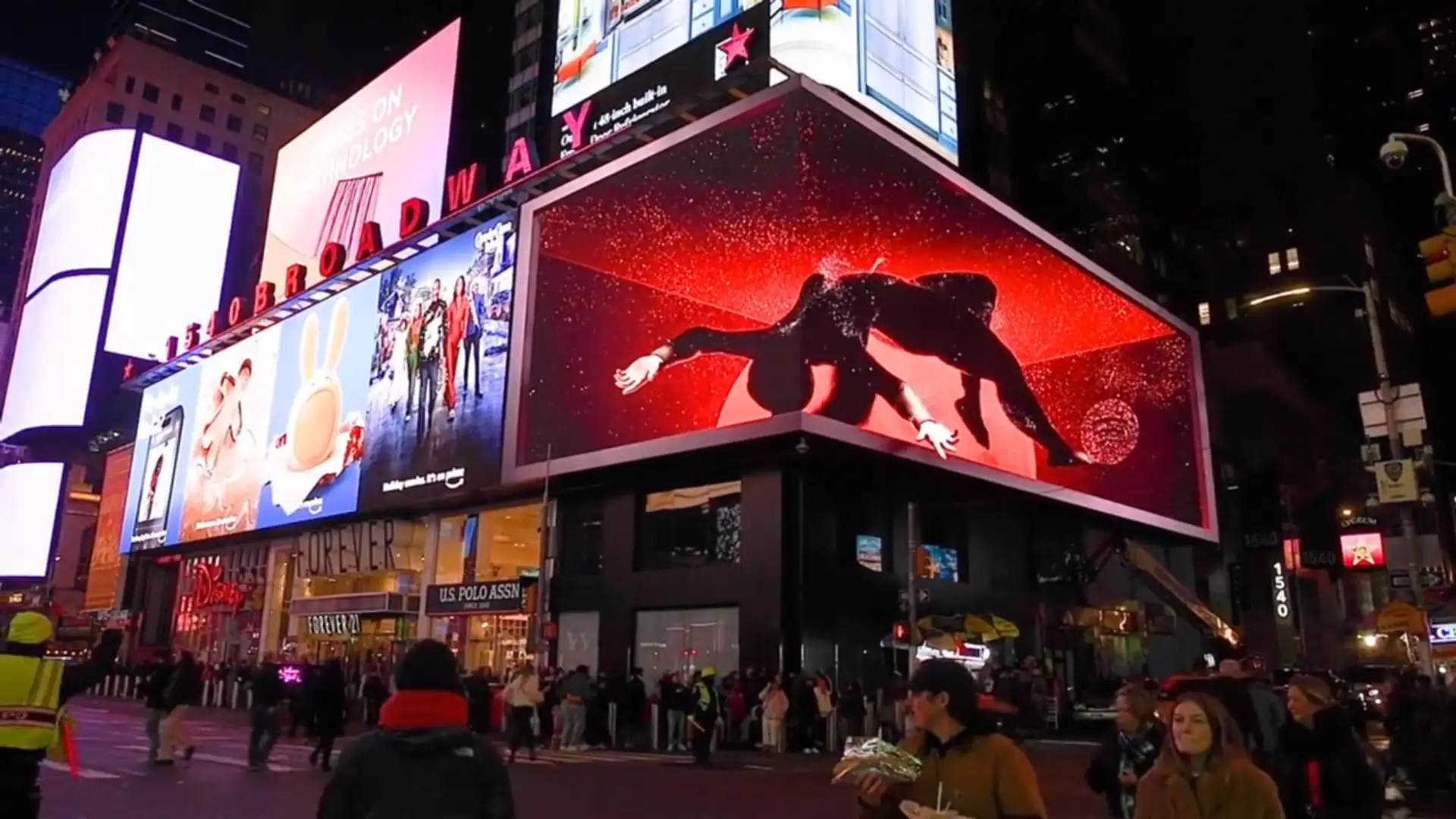

More application

Technical Specifications

Category	Value
Pixel Pitch	P2.5 / P3 / P4 / P5 / P6 / P8 / P10
Brightness	≥5500 nit
Refresh Rate / Grayscale	≥1920 Hz; 14 bit
Power / Lifespan / Maintenance	Average 150 W/m²; Max 450 W/m²; lifespan ≥100,000 h; single-point maintenance

Download Full Datasheet

Frequently Asked Questions

The pixel pitch determines both clarity and cost. As a rule of thumb, the minimum viewing distance in meters equals the pixel pitch in millimeters. For example, P5 requires at least 5 meters of viewing distance. For the best visual experience, multiply the pixel pitch by 3 — so P5 is ideal from about 15 meters. The BTS series covers P2.5 to P10, suitable for viewing distances from a few meters to over 30 meters.

Yes. The BTS series delivers brightness ≥5500 nits, which exceeds the 5000–10000 nits required for outdoor use in direct sunlight. Combined with a contrast ratio ≥5000:1 and a 120° viewing angle, images remain clear and vivid from different positions, even in bright outdoor conditions.

The BTS series uses low-voltage drive technology (DC 4.2–5V). Average power consumption is 150W per square meter, with maximum power at 450W per square meter. In real-world operation, the display rarely runs at maximum. A 10㎡ screen running 12 hours daily uses approximately 18 kWh. The low-power design reduces operating costs and heat generation.

The typical lifespan is ≥100,000 hours. Under normal use, outdoor LED displays maintain acceptable performance for 6 to 8 years. Lifespan depends on lamp quality, power supply, heat dissipation, and operating environment. The BTS series uses high-quality SMD lamps and constant-current drive ICs to ensure stable, long-term performance.

The BTS series features high-quality lamps with brightness ≥5500 nits, a contrast ratio ≥5000:1, and a refresh rate ≥1920Hz. It uses low-scan ICs to reduce flickering and supports single-point brightness and color correction for uniform, vivid images. With SMD packaging and 14-bit gray scale, it delivers rich color gradation and stable performance for outdoor advertising, stadiums, and commercial displays.
