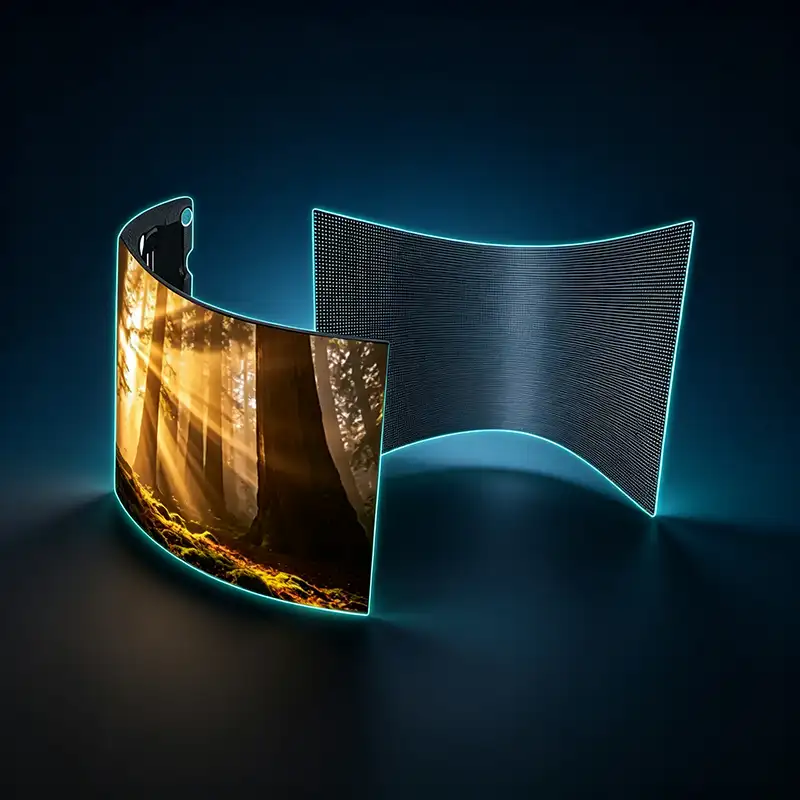

BTX Series
Flexible LED modules with ≥120° bending, 3840Hz refresh, and magnetic fine-tuning for creative curved displays.

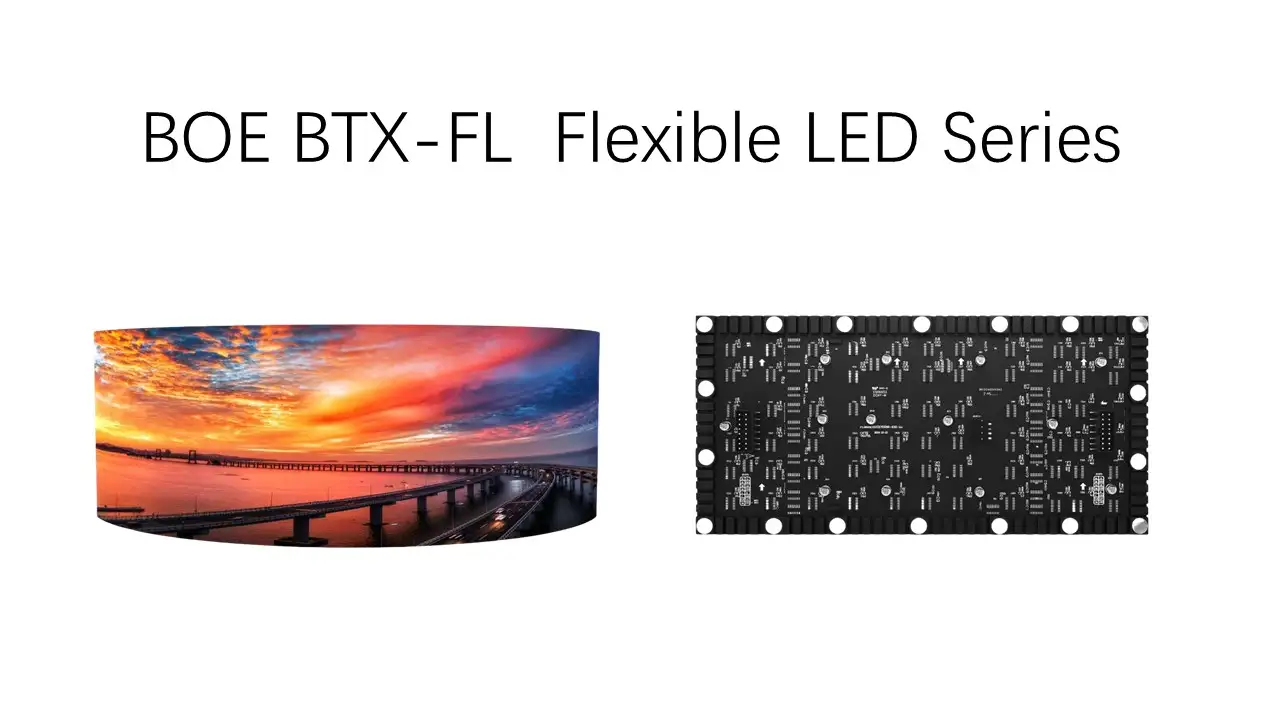

The BTX-FL series uses flexible soft PCB boards and high-quality silicone bottom cases, enabling ≥120° bending for both inner and outer arcs. With 3840Hz refresh rate and brightness up to 600 nits (P2.5), it delivers smooth, vivid images for creative curved displays. The V-shaped soft rubber design allows splicing without interference, offering wider styling freedom.
Product Overview
Technical Advantages
The BTX-FL series uses flexible soft PCB boards and high-quality silicone bottom cases, enabling ≥120° bending for both inner and outer arcs. With 3840Hz refresh rate and brightness up to 600 nits (P2.5), it delivers smooth, vivid images for creative curved displays. The V-shaped soft rubber design allows splicing without interference, offering wider styling freedom.
System Integration
Each module features 18 strong magnetic adsorption points for fine-tuning flatness during installation. Signal input/output uses flat cables, and power input is 5V. The modules integrate easily into cylindrical, ribbon, and wave-shaped structures using standard LED cabinets or custom frames. A distribution box and LED video processor complete the system.
Maintenance & Reliability
The flexible modules are designed for reliable operation in indoor environments (-10°C to 40°C, 10%–65%RH). The magnetic design simplifies module replacement and adjustment. The silicone bottom case protects the PCB during bending and handling. Do not bend modules violently or repeatedly beyond the specified angle.
Core Selling Point
Flexible LED modules with ≥120° bending, 3840Hz refresh, and magnetic fine-tuning for creative curved displays.
Product Presentation
Related Application

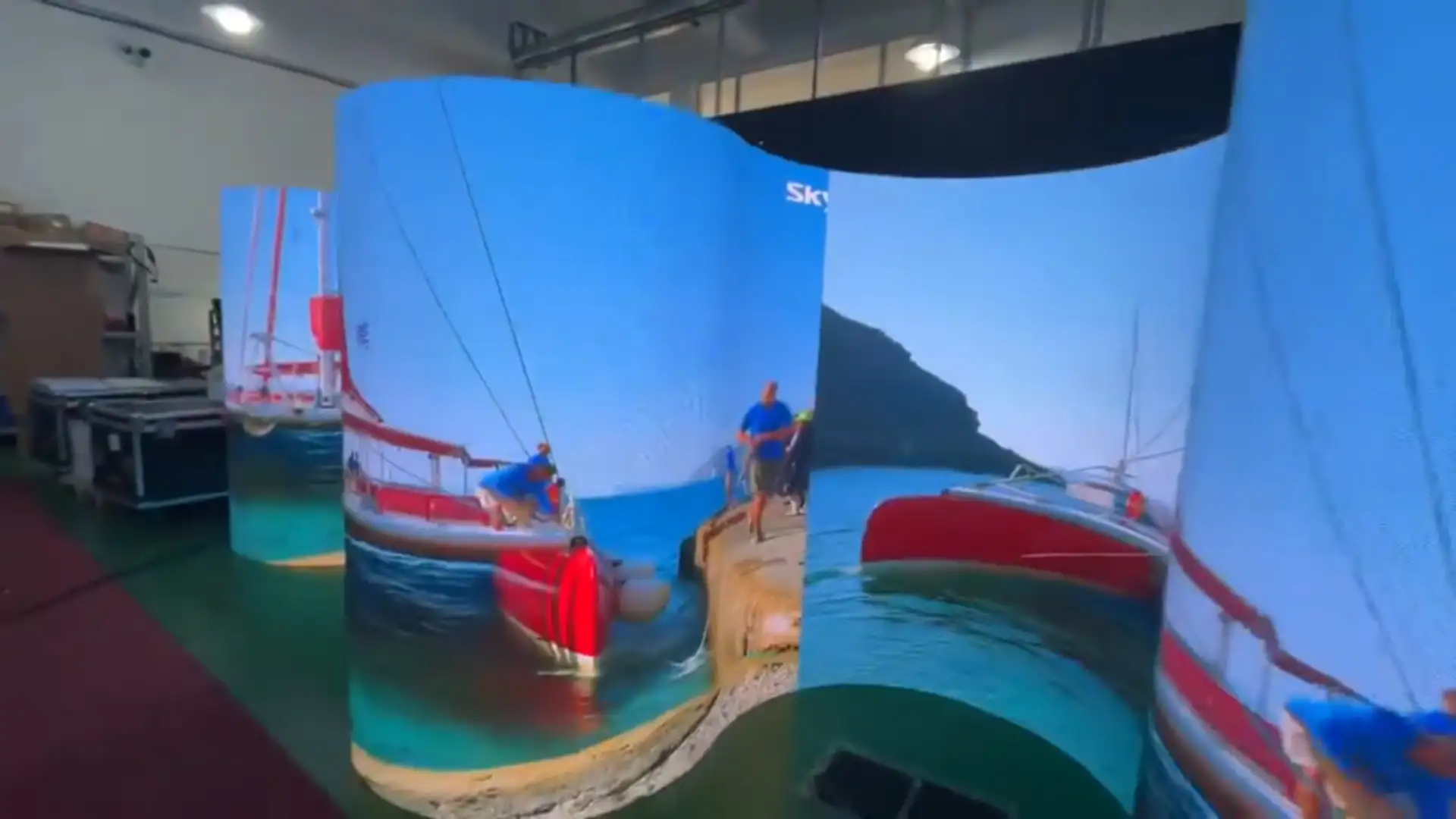

Creative Exhibition & Showroom LED Display
Exhibitions and showrooms require immersive, eye-catching visuals. The BTX-FL series bends ≥120° for wave and cylindrical shapes, creating seamless, dynamic displays that draw crowds.

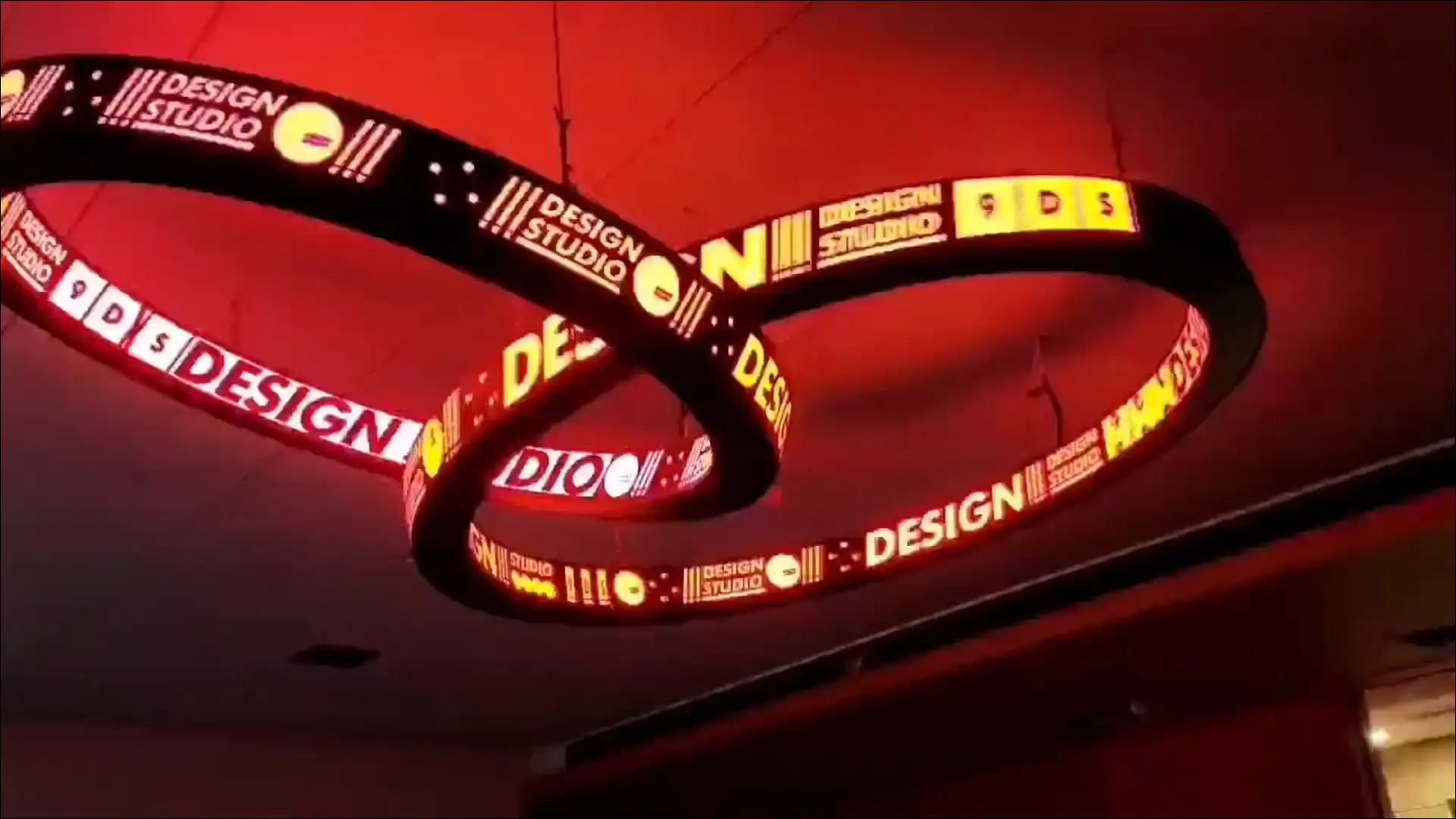

Commercial Atrium Hanging LED Ribbon
Commercial atriums and lobbies need striking suspended centerpieces. The BTX-FL flexible modules allow ribbon and loop structures, combining 3840Hz refresh rate with lightweight design for stunning aerial visuals.

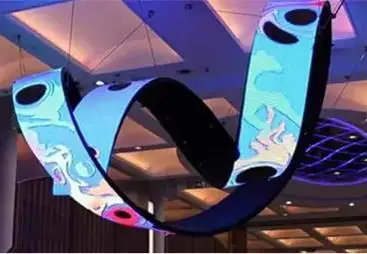

Stage & Event Intertwined Ring LED Display
Live events and brand activations demand dynamic, kinetic visual structures. The BTX-FL series supports complex inner and outer arc splicing for intertwined rings, delivering high-impact visuals for stage and experiential marketing.
Technical Specifications
| Category | Value |
|---|---|
| Pixel Pitch | P1.538 / P1.8605 / P2 / P2.5 |
| Brightness | ≥450 nit; ≥600 nit |
| Refresh Rate / Grayscale | 3840 Hz |
| Protection / Environment | Operating: -10°C to +40°C; humidity: 10% to 65%RH non-condensing |
| Power / Lifespan / Maintenance | Unit board power ≤20 W; ≤22.5 W |
