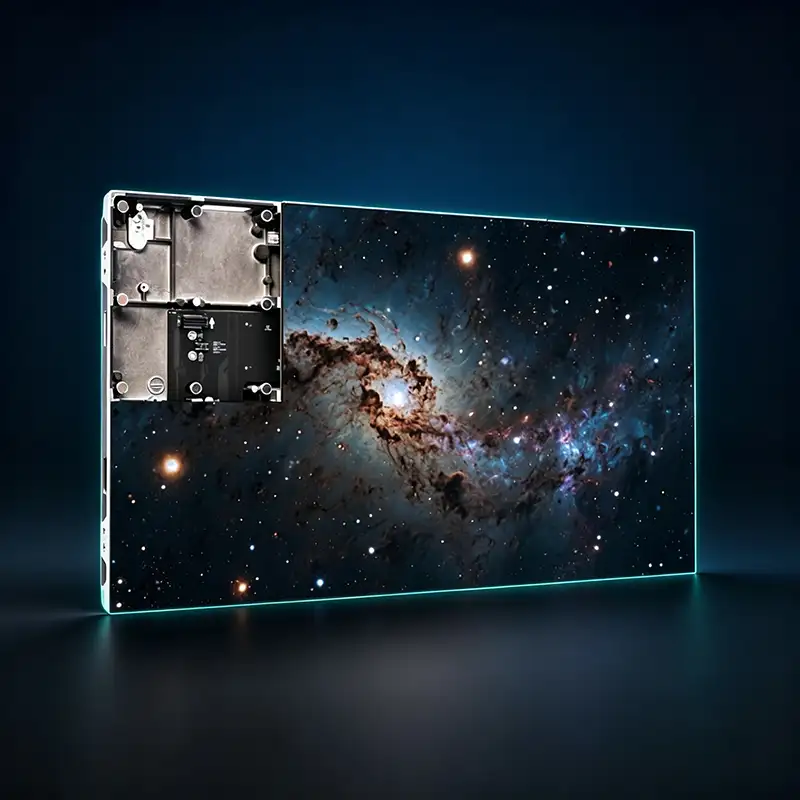

BYH Series
Ultimate COB optics with cold-screen thermals, simplified structure, and 40% faster installation.
The CHECHI BYH Series is an indoor COB LED display available in P0.9 and P1.25. Featuring 20000:1 contrast, 110% NTSC color gamut, and ≥800 nits calibrated brightness, it delivers deep blacks and vivid colors. Its large 14.5-inch module and ≤60mm thin profile support 40% faster installation, making it ideal for conference rooms, control centers, and premium retail spaces.
Product Overview
Technical Advantages
The BYH series delivers ultimate optics with 20000:1 contrast ratio, 110% NTSC color gamut, and ≥800 nits calibrated brightness for deep blacks and lifelike colors. It features excellent uniformity in both bright and dark states, eliminating color segmentation and seams. The COB encapsulation ensures a dirt-resistant and easily wipeable surface, while the ink color uniformity (ΔL < 0.23) provides visually superior black performance.
System Integration
The simplified structure uses larger 14.5-inch modules, increasing installation efficiency by 100% and reducing overall thickness to <60mm. It is compatible with standard installation structures, reducing labor costs. The display supports power and signal dual input/dual backup for reliable performance.
Maintenance & Reliability
Front maintenance allows easy module replacement, and the COB surface is easy to clean and dirt-resistant. The BYH series includes a 3D heat dissipation system with a cold screen experience (≤37°C) and ultra-low power consumption (reducing electric power consumption by 46% compared to general COB). It has passed 1000-hour reliability testing and holds multiple certifications including CE, FCC, CB, cURus, 8K, and HDR 3.0.
Product Presentation
Related Application

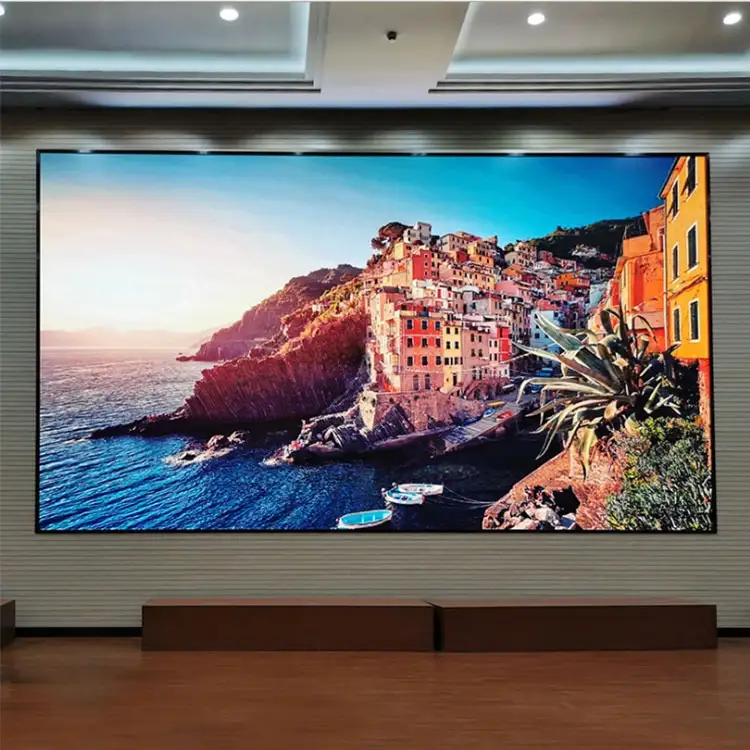

Executive Meeting Room LED Display
Premium meeting rooms demand seamless, distraction-free visuals for presentations and collaboration. The BYH series delivers 20000:1 contrast and 110% NTSC color gamut on a bezel-free screen, blending effortlessly into high-end interiors while providing a comfortable, cold-screen viewing experience for all-day meetings.

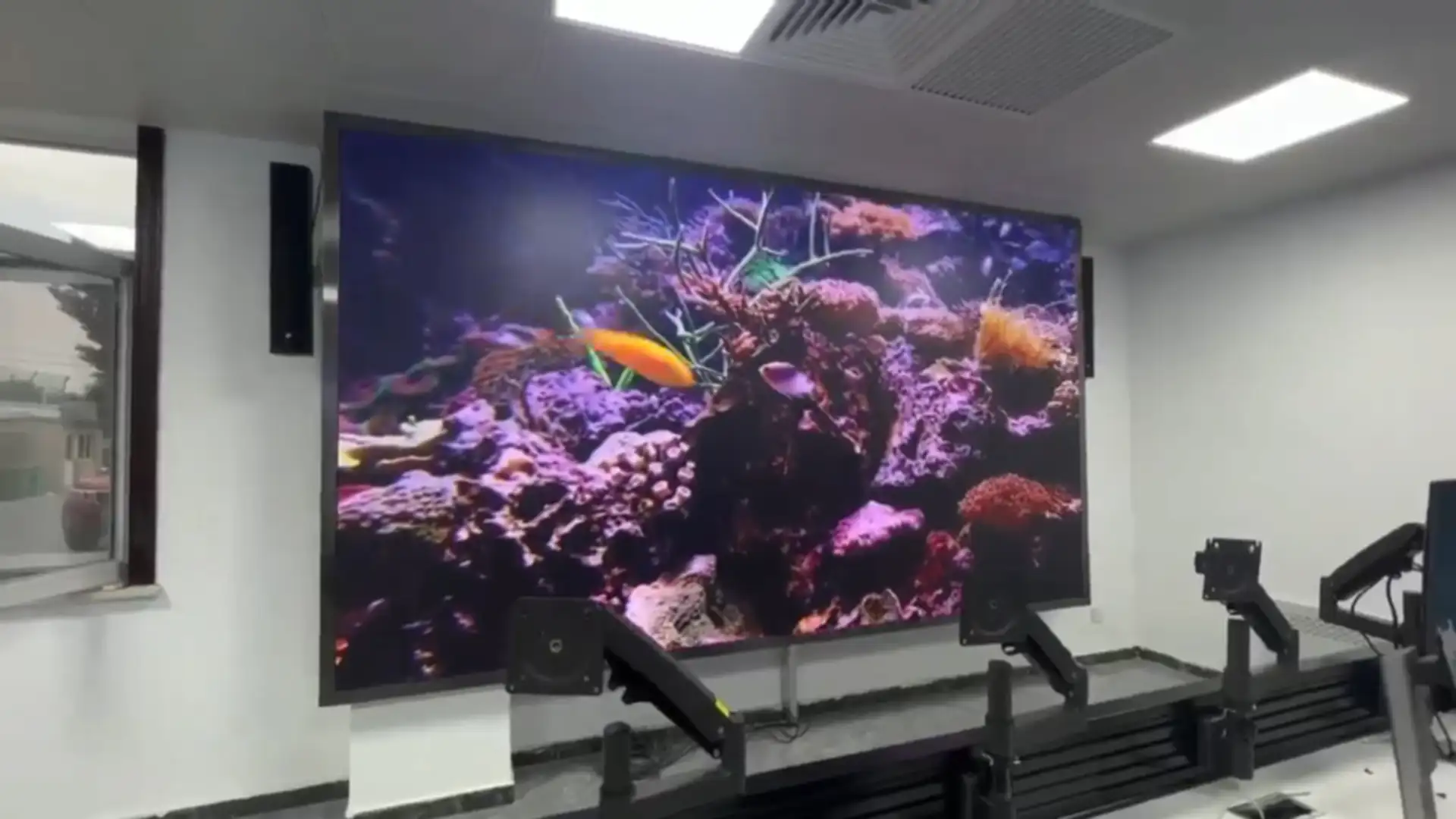

Control Room & Broadcast Studio Display
Control rooms and studios require accurate colors and reliable performance for critical monitoring or live production. The BYH series offers excellent dark-state uniformity and 3840Hz refresh rate, ensuring flicker-free visuals on camera with intricate details perfectly preserved.

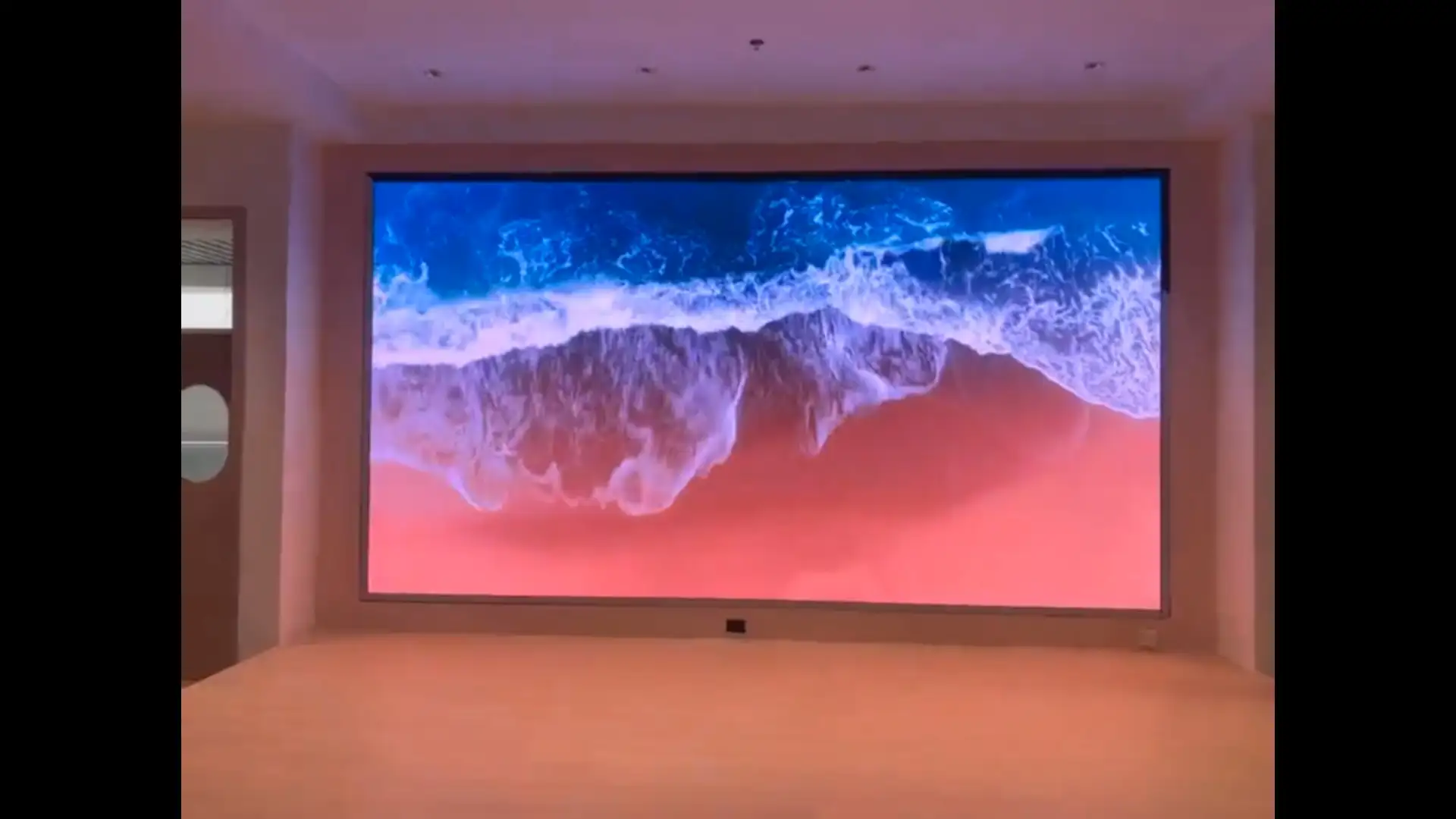

Immersive Exhibition & Art Gallery Display
Immersive art spaces require striking visuals that draw audiences into the content. With a <60mm ultra-thin profile, cold-screen design, and vivid color reproduction, the BYH series blends seamlessly into minimalist spaces, delivering smooth, energy-efficient digital art displays.
Technical Specifications
| Category | Value |
|---|---|
| Pixel Pitch | P1.25 / P0.9375 |
| Brightness | ≥800 nit after calibration |
| Refresh Rate / Grayscale | 3840 Hz |
| Protection / Environment | Operating: -10°C to +40°C / 10% to 90%RH; storage: -20°C to +60°C / 10% to 90%RH |
| Power / Lifespan / Maintenance | Peak 310 W/m²; lifespan ≥100000 h; front maintenance |
Frequently Asked Questions
